Quad-Channel Video Coverage

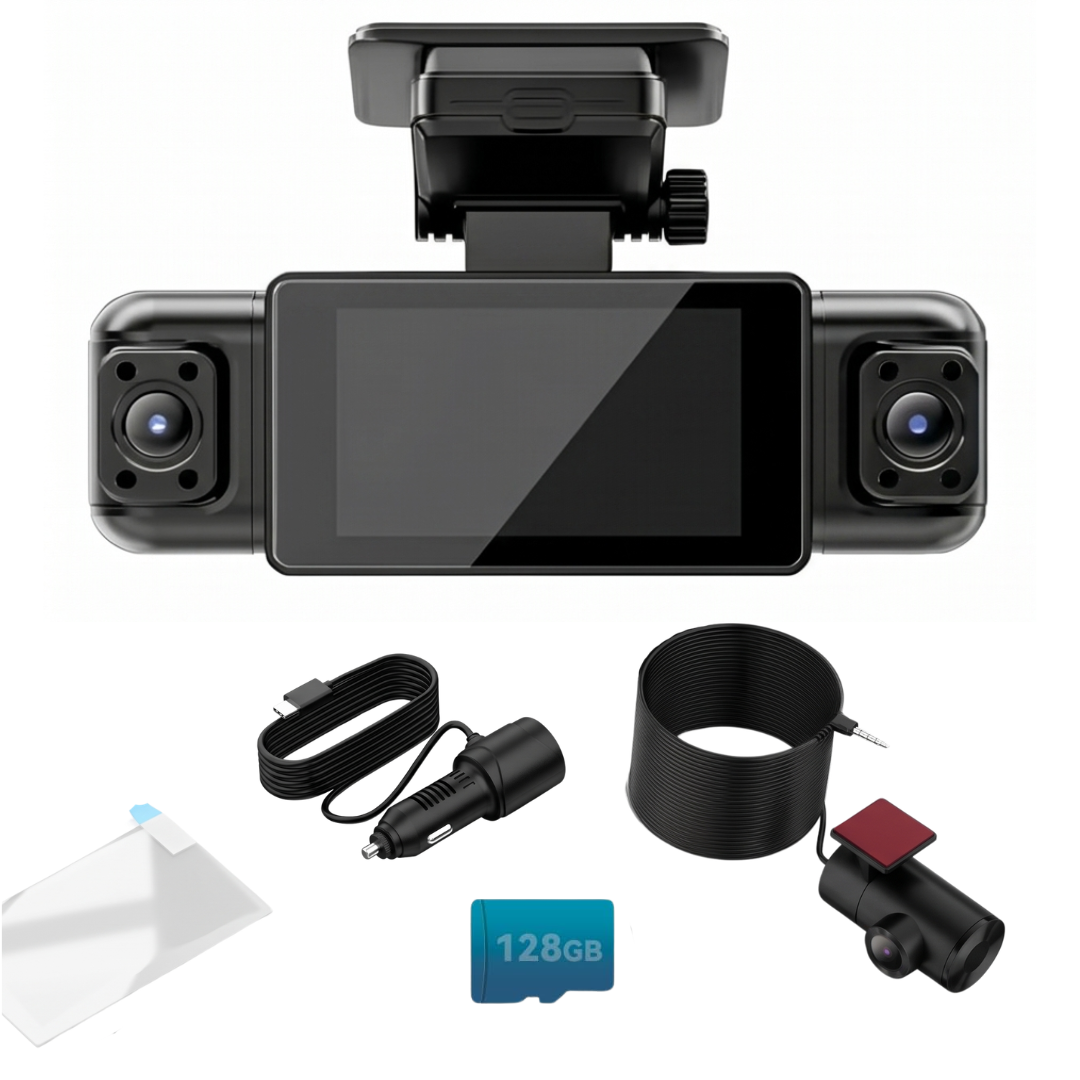

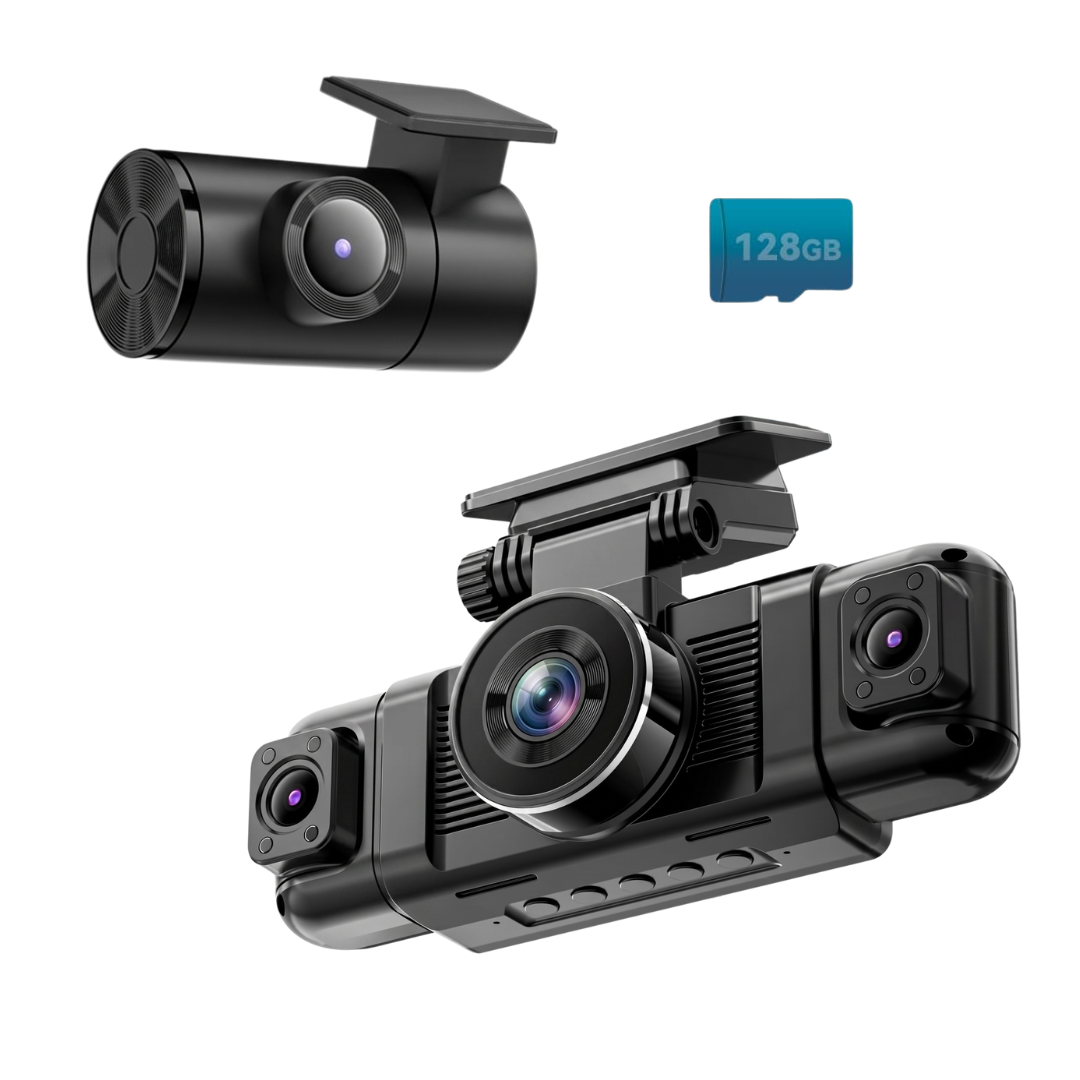

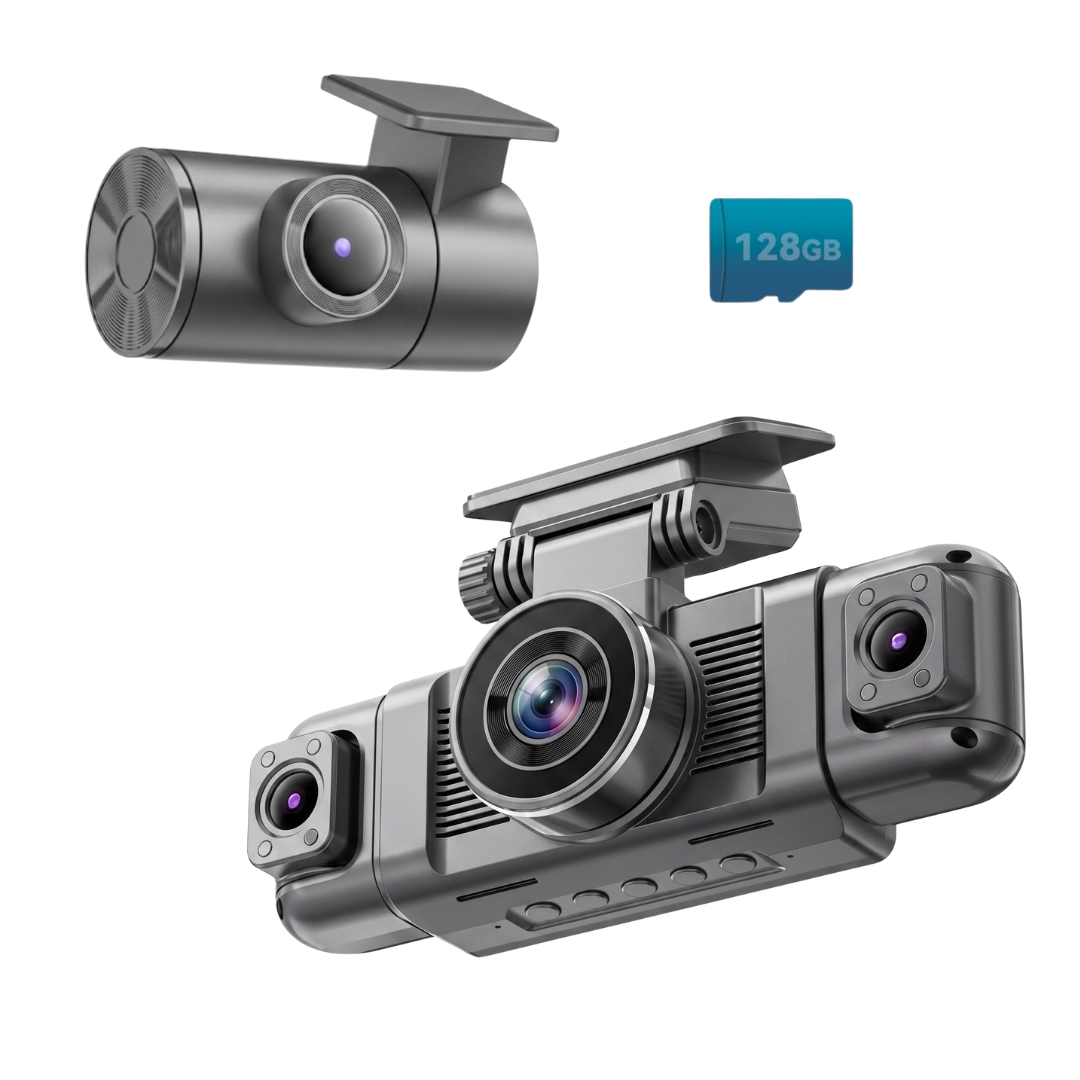

This 4-channel dash camera system uses a windshield-mounted main unit with integrated front-facing and side recording modules paired with a wired rear camera. The housing combines ABS polymer construction with internal metal mounting hardware, adjustable side camera positioning, and a tilting windshield bracket for directional alignment. Recording modes support simultaneous 1080P front, rear, side, and cabin roadway capture, or a 1440P front channel combined with three auxiliary 1080P recording channels. The front and rear cameras use 170-degree viewing angles, while the side-facing modules provide 150-degree directional coverage for expanded lane and cabin visibility.
Multi-Camera Recording Operation
The dash camera operates through a 12V vehicle cigarette lighter power connection and uses a built-in super capacitor system instead of a traditional lithium battery. Video files store directly to the included 128GB microSD card with support for storage expansion up to 256GB. Integrated 5GHz WiFi connects the system to Android and iPhone devices through a companion mobile application for video preview, file transfer, and recording management. Additional functions include loop recording, G-sensor event protection, time-lapse parking surveillance, and infrared-assisted cabin recording supported by 8 integrated IR lamps.
Windshield Mounting and Cable Routing

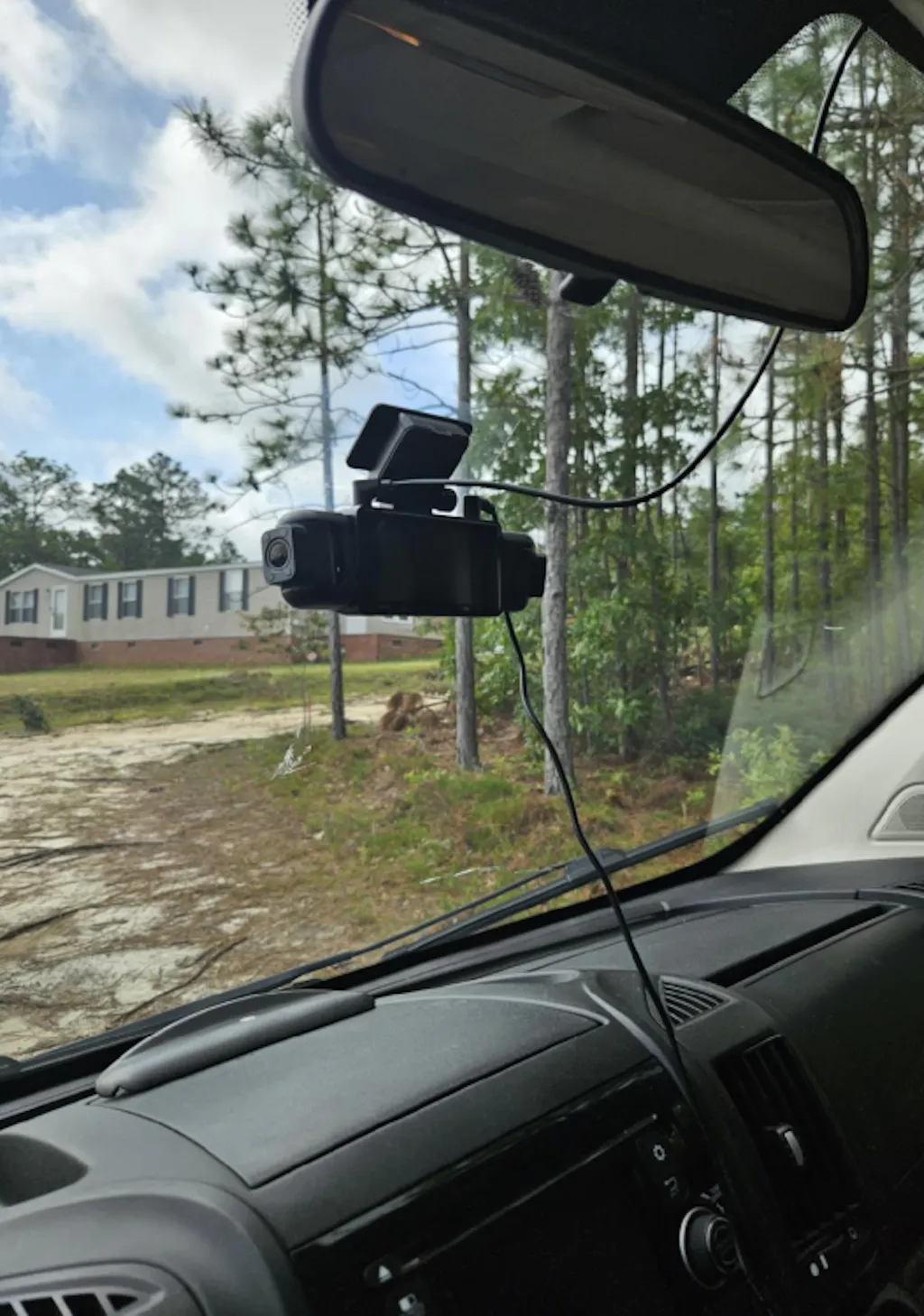

The primary camera assembly mounts directly to the windshield using the included adjustable bracket and power cable system. Side camera modules rotate for directional positioning, while the rear camera connects through an extended wired cable routed along the vehicle interior trim panels. WiFi controls can be activated directly from the onboard buttons, while the integrated IPS display supports local playback, menu navigation, and recording adjustment without requiring smartphone access.
Product Benefits:
-
4-Channel Recording: Simultaneous front, rear, side, and cabin video monitoring.
-
Dual Resolution Modes: Supports quad 1080P recording or 1440P front recording mode.
-
5GHz WiFi Connectivity: Wireless app access for playback, transfer, and camera settings.
-
Super capacitor Power: Heat-resistant capacitor system for automotive temperature conditions.
-
Included 128GB Storage: Pre-installed microSD card with support up to 256GB capacity.
Specifications:
-
Material: ABS polymer housing
-
Display Size: 3.16 in IPS display
-
Video Resolution: 1080P all camera or 1440P (front)
-
Frame Rate: 30 FPS
-
Field of View: 170° front and rear, 150° side cameras
-
Lens Aperture: f/1.8
-
Power Source: 12V vehicle cigarette lighter charger
-
Storage Capacity: Includes 128GB microSD card, supports up to 256GB
-
Connection Type: 5GHz WiFi with mobile app connection
-
Recording Features: Loop recording, G-sensor event recording, time-lapse recording
-
Night Recording Hardware: 8 infrared LED lamps
-
Parking Mode: Time-lapse mode and impact-triggered recording mode
-
Camera Adjustment: 90° front bracket adjustment, 360° rear camera rotation
-
Operating Temperature: -4°F to 167°F / -18°C to 75°C
-
Placement or Use Area: Front windshield, rear cabin, vehicle interior
